87ft cast with double haul

The purpose of this simulation is to show output for a “complete cast” including:

· lifting of the line from the water surface.

· false casting.

· hauling and feeding of line.

· delivery with the line landing on the water.

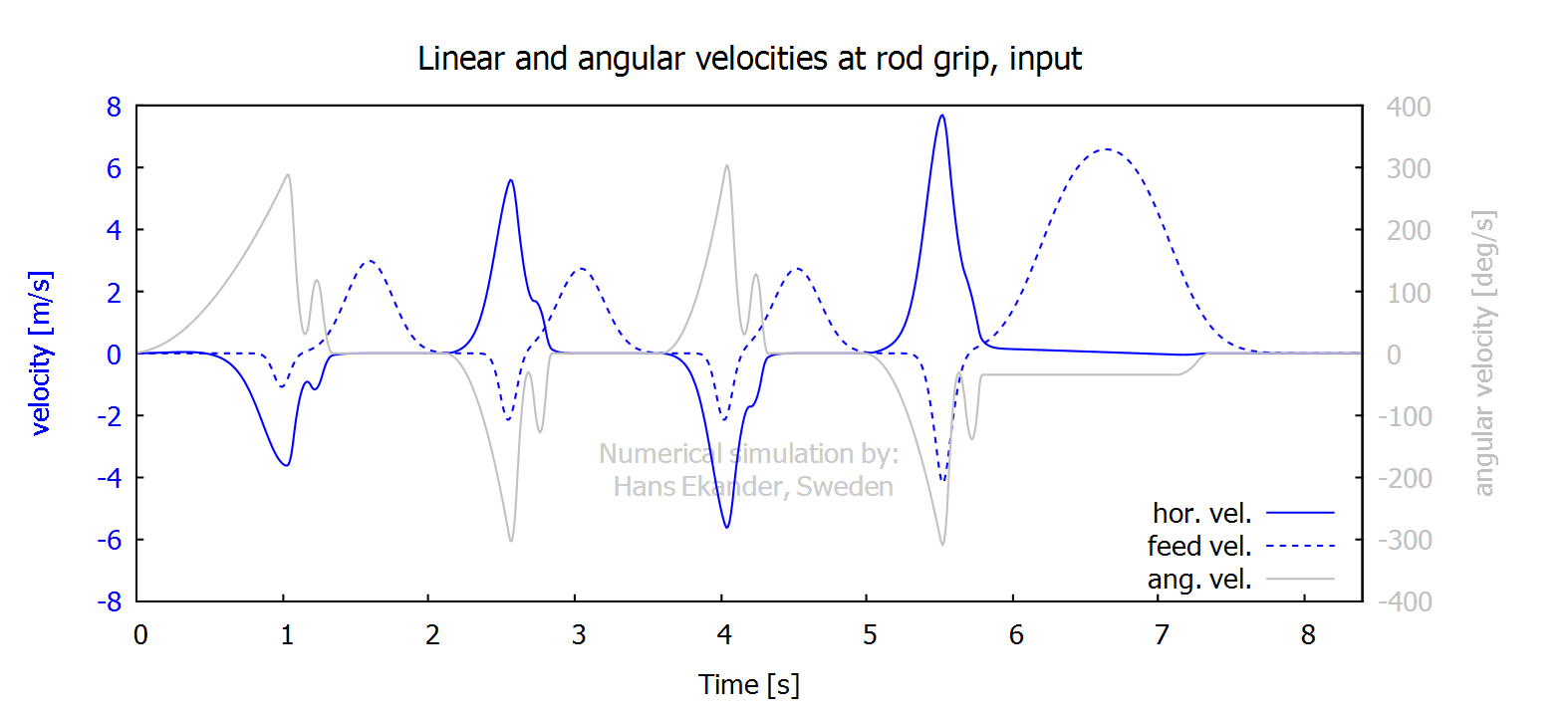

Input (line feed velocity < 0 means hauling)

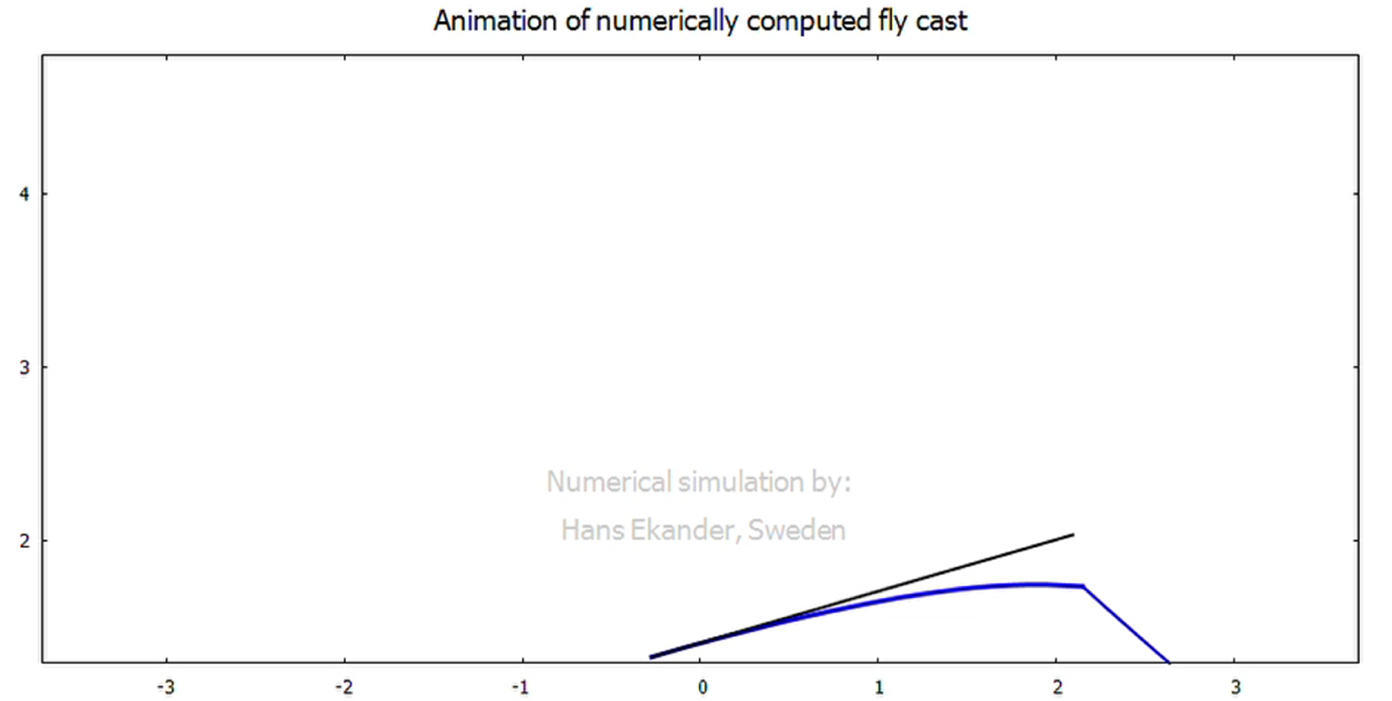

Output, animations (click on image to start animation)

The animation below includes a “stiff rod in black” showing the hand movement.

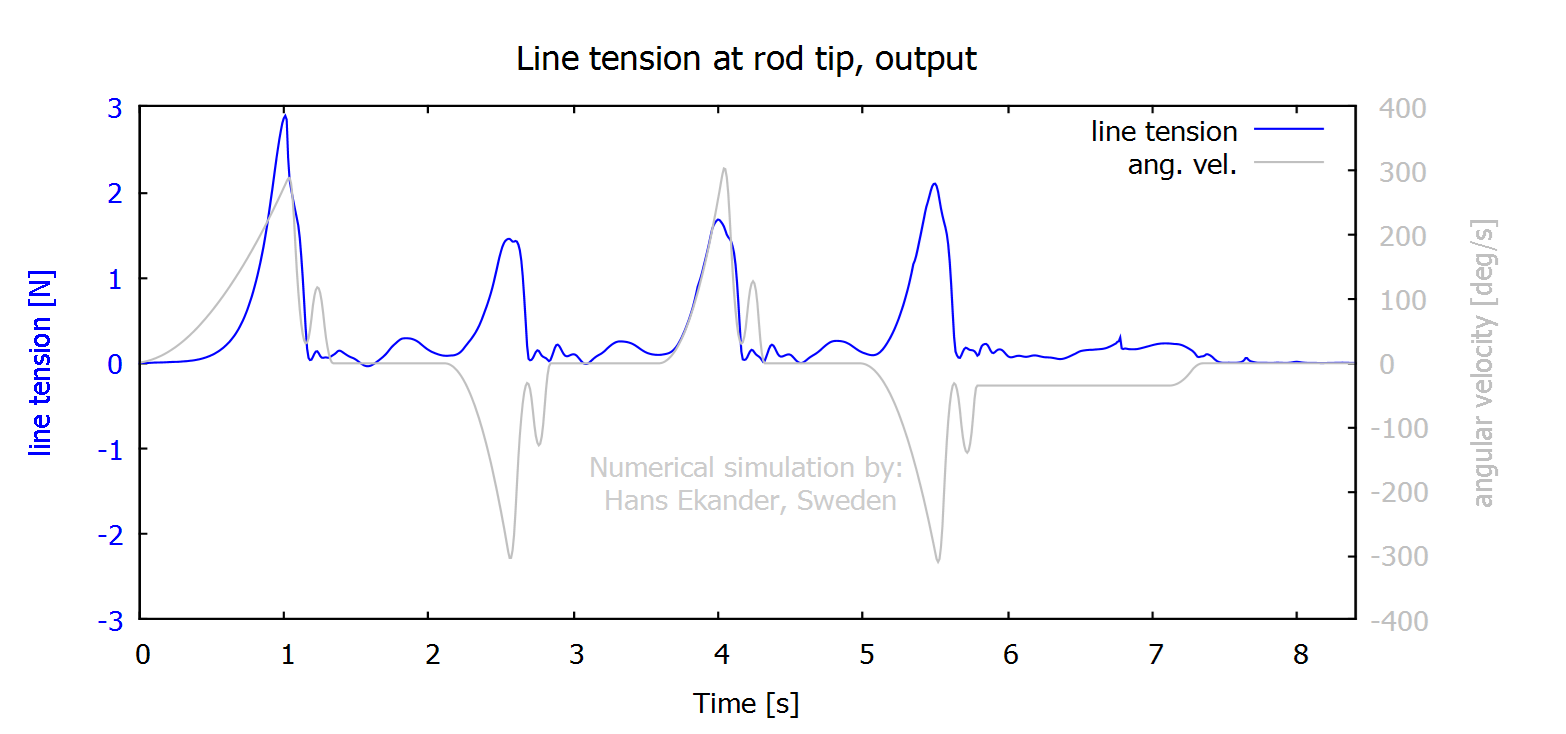

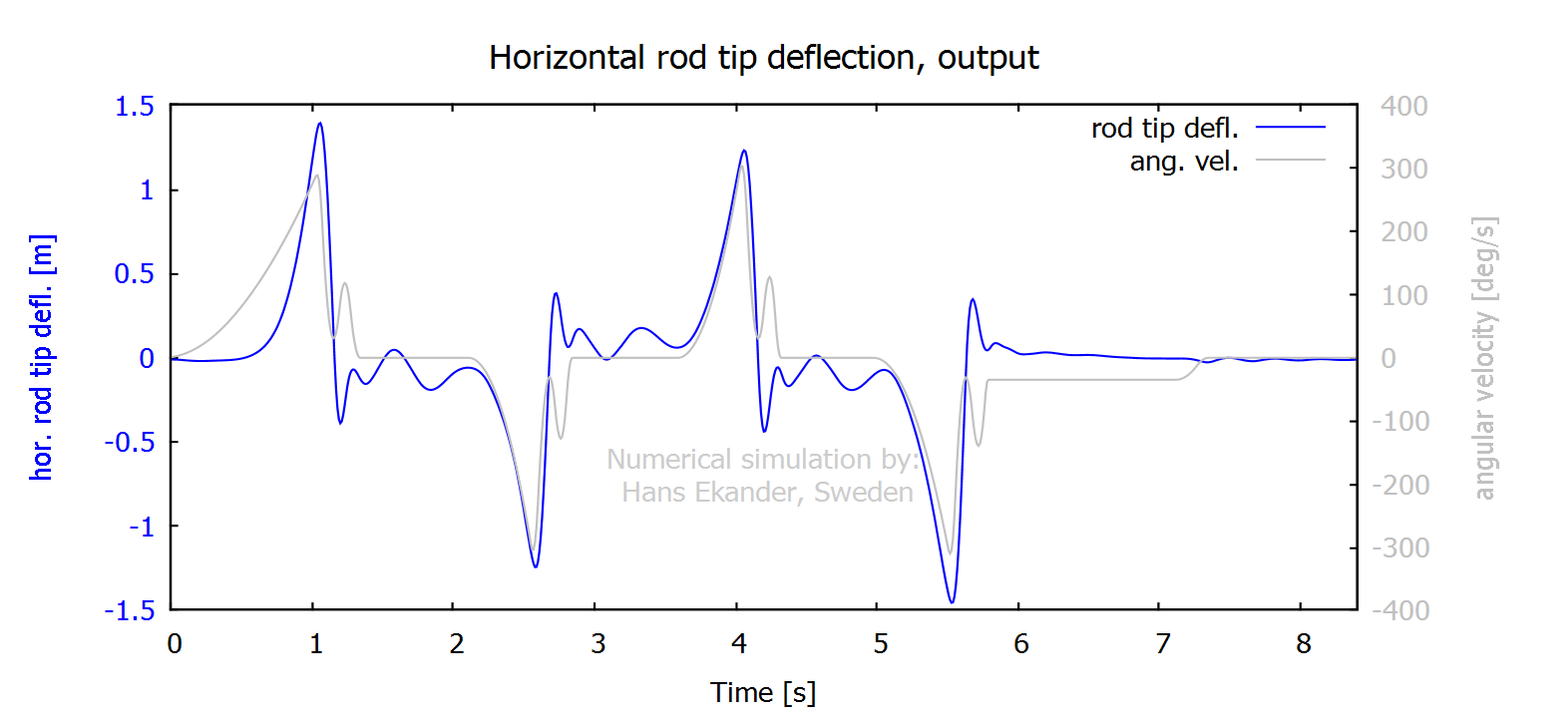

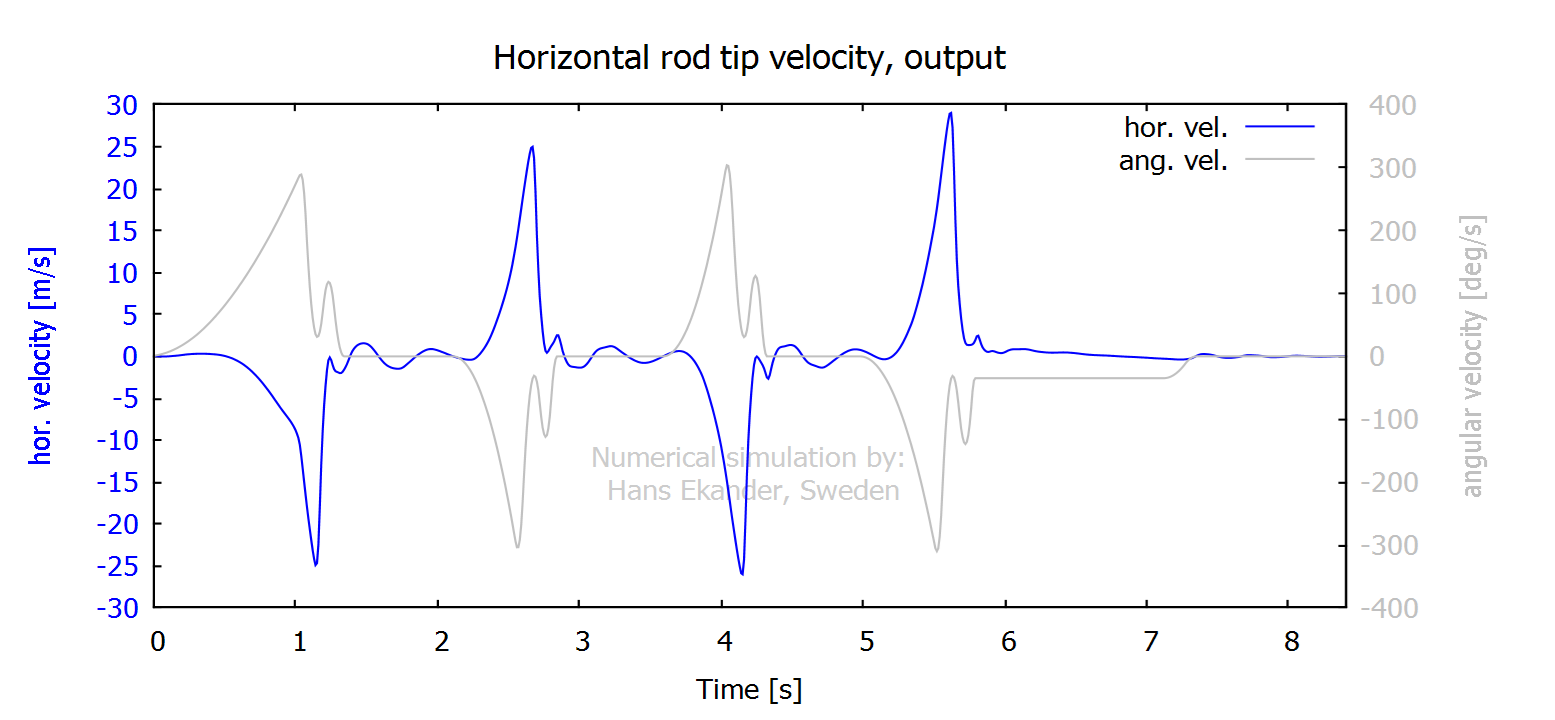

Output, additional results

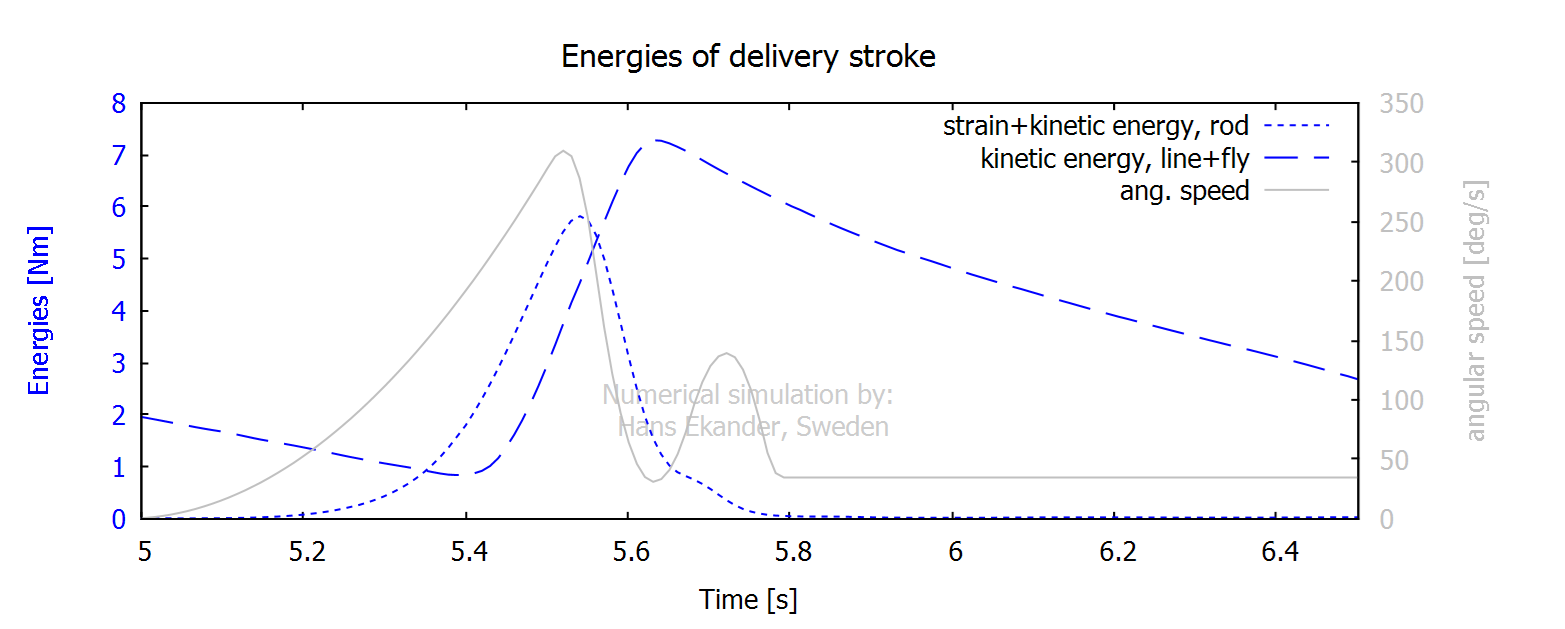

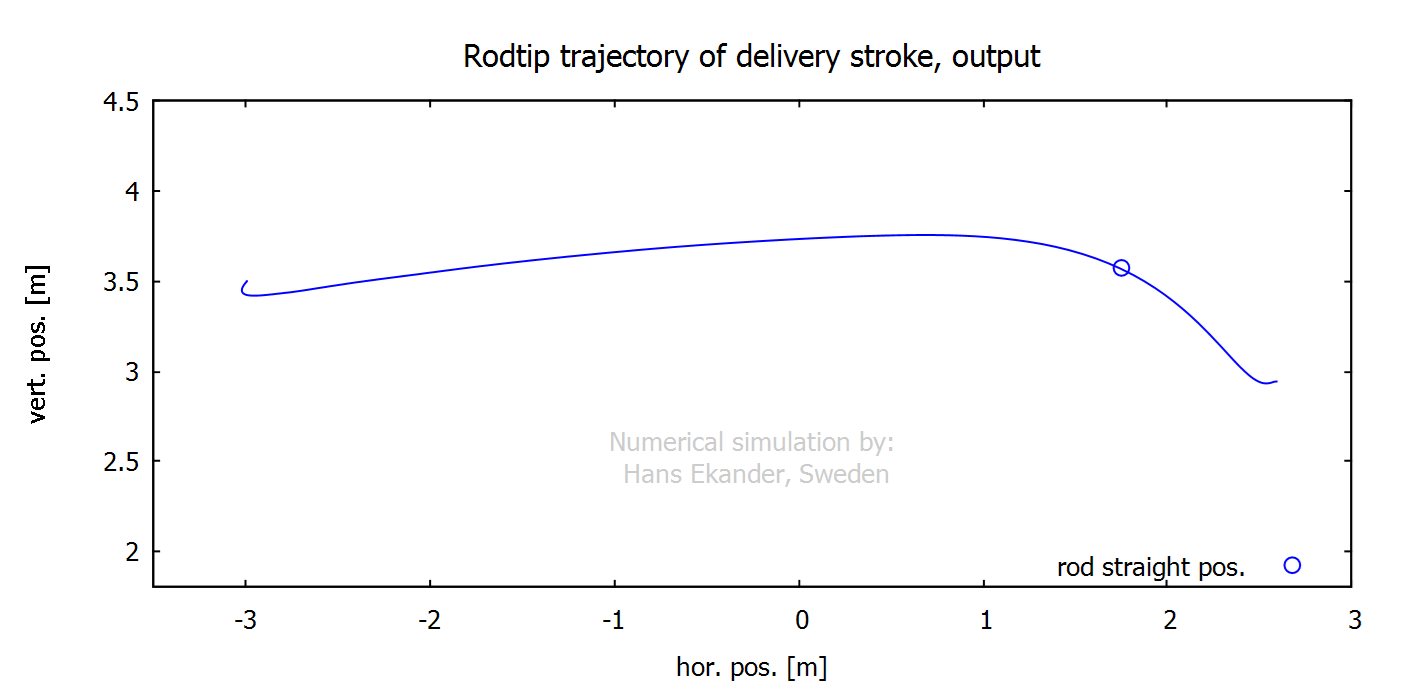

Graphs below shown for delivery stroke
