50ft oh casts, comparison alternative rods

Purpose

The purpose of this comparison is to show the impact of changing rods.

The comparison is made between two simulations:

· The 50ft oh ref. cast. The rod used in this simulation is a “high end” rod from a well reputed fly rod manufacturer.

· “50ft alt. rod” is simulated using an “entry level” rod from another well reputed fly rod manufacturer.

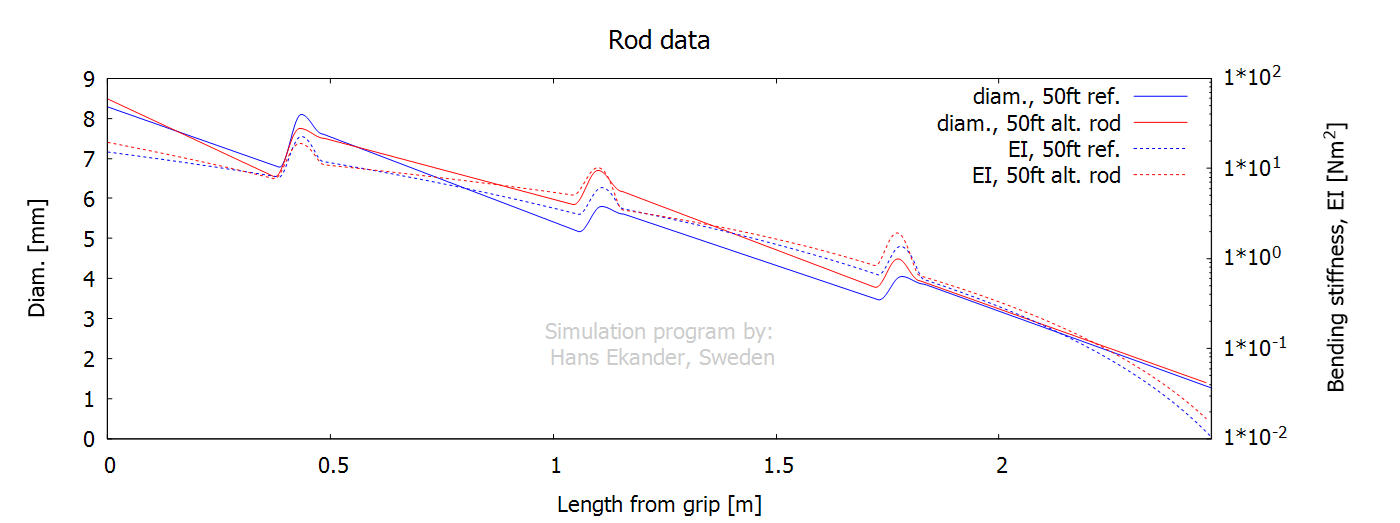

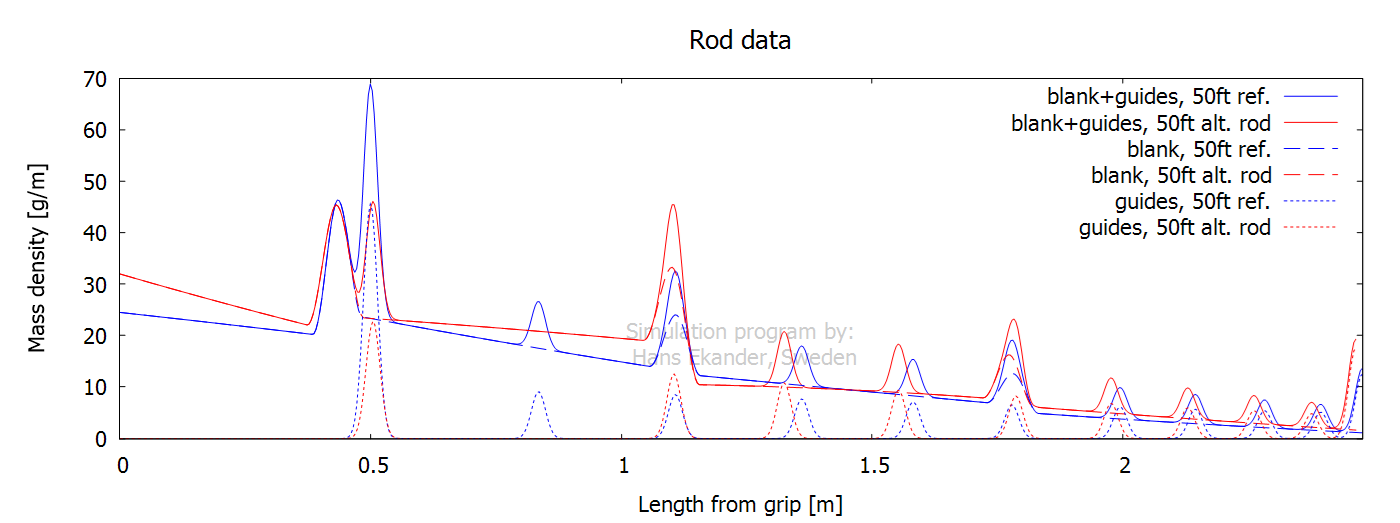

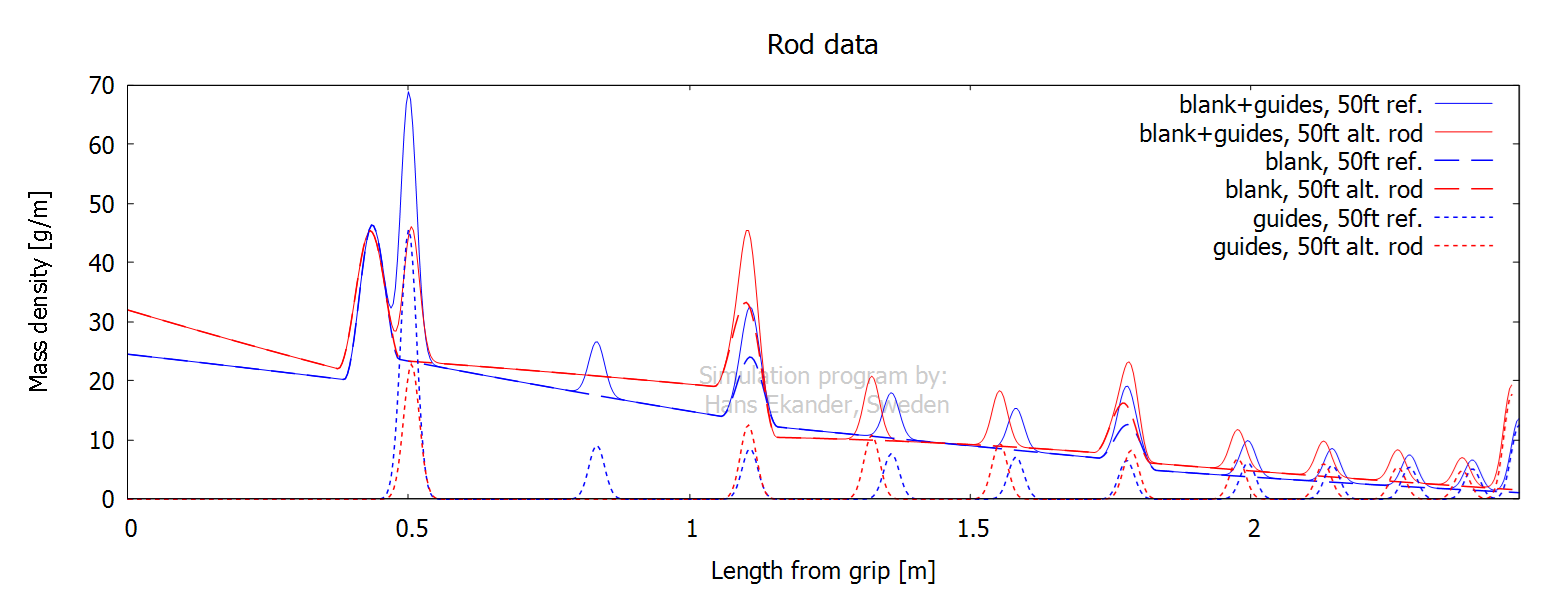

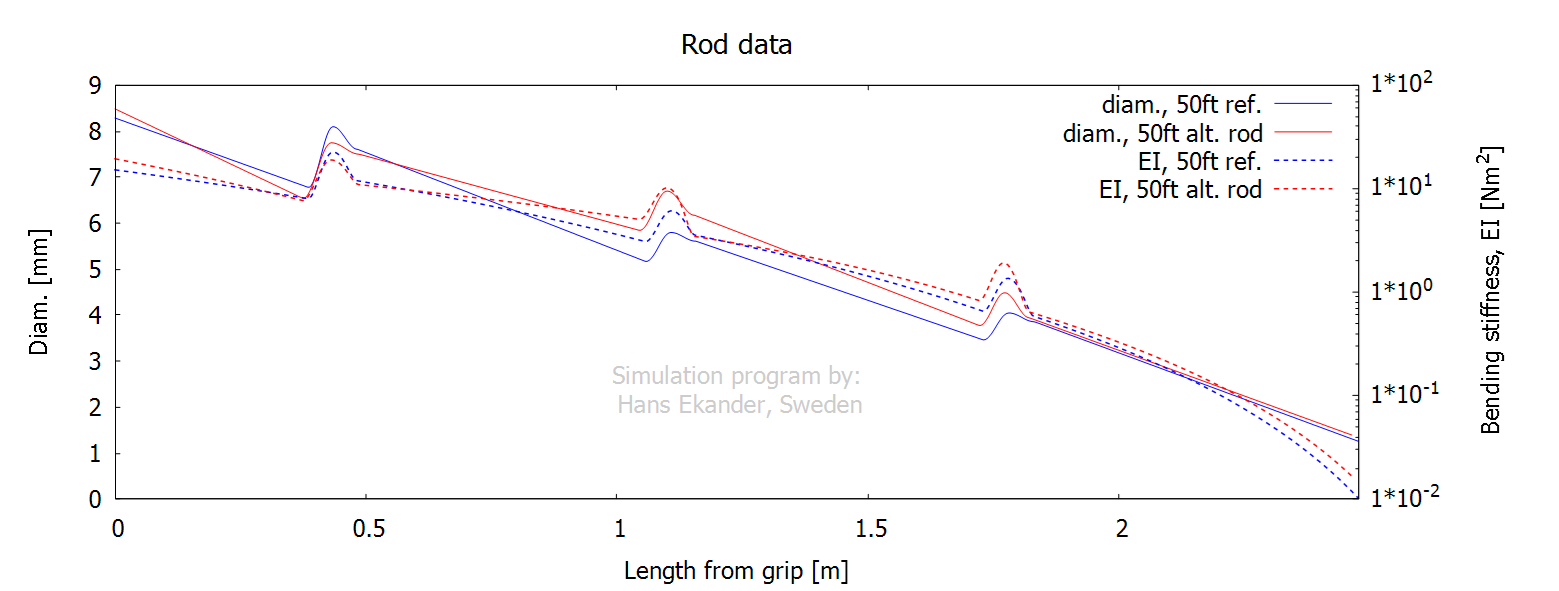

Input, rod data

The rod input data, shown for the two cases below, is the only input that differs between the two compared cases.

Output, animation

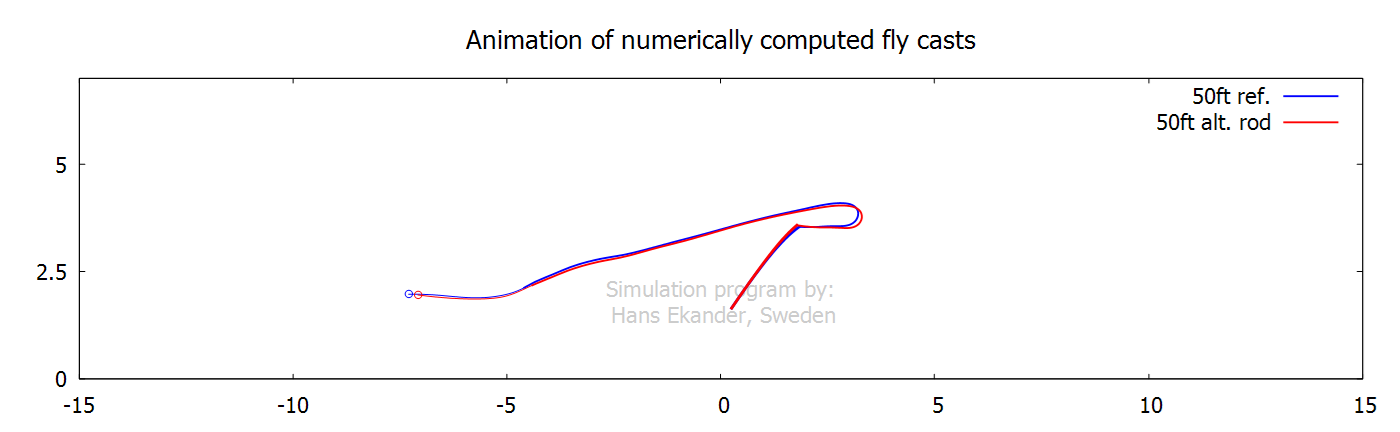

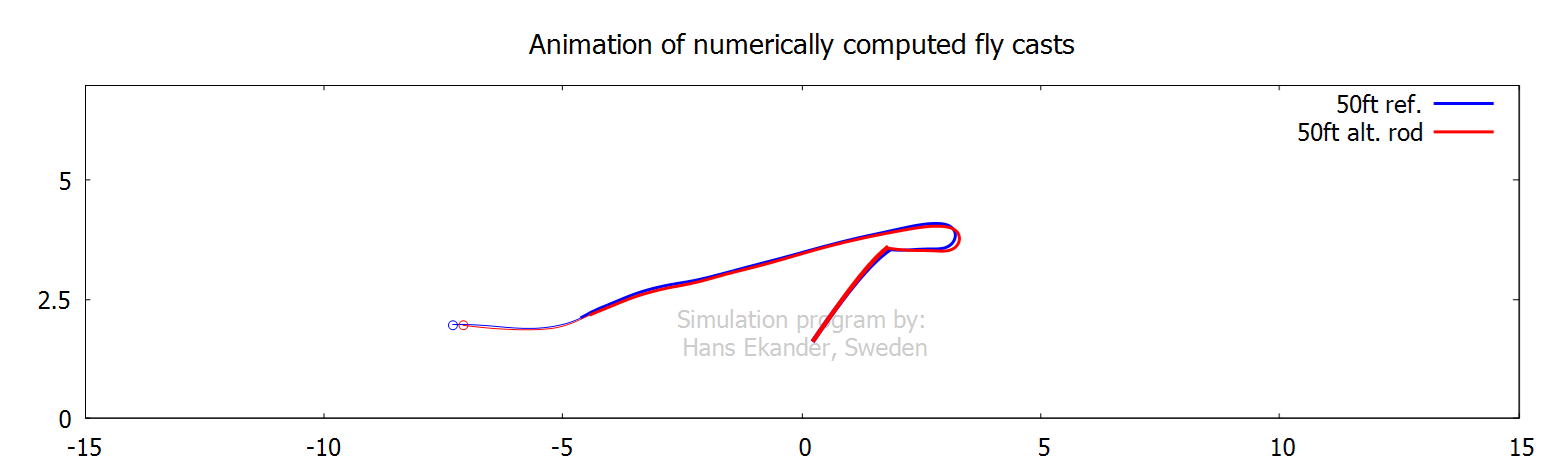

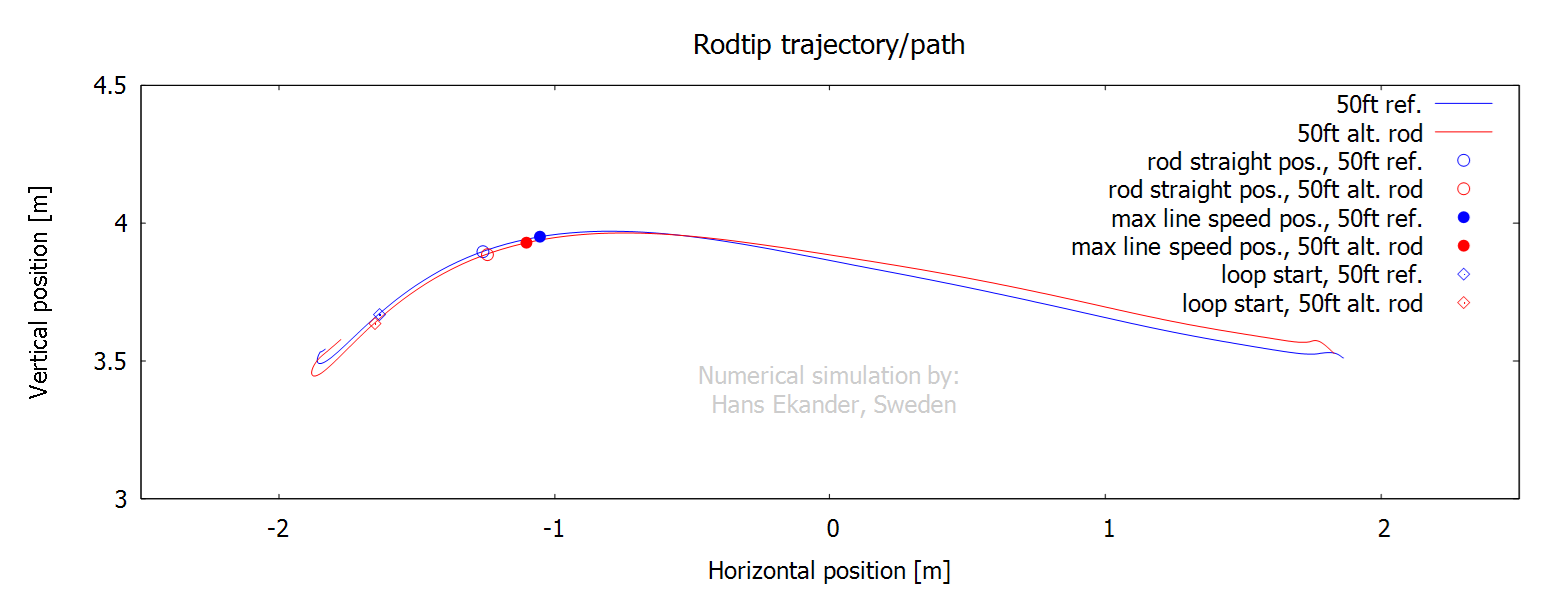

Click on the graph below to start animation.

Comment, animation:

The cast with the alternative rod gives a slightly higher loop speed and a smaller loop radius. Possibly, this may be explained by the slightly higher bending stiffness of the alt. rod.

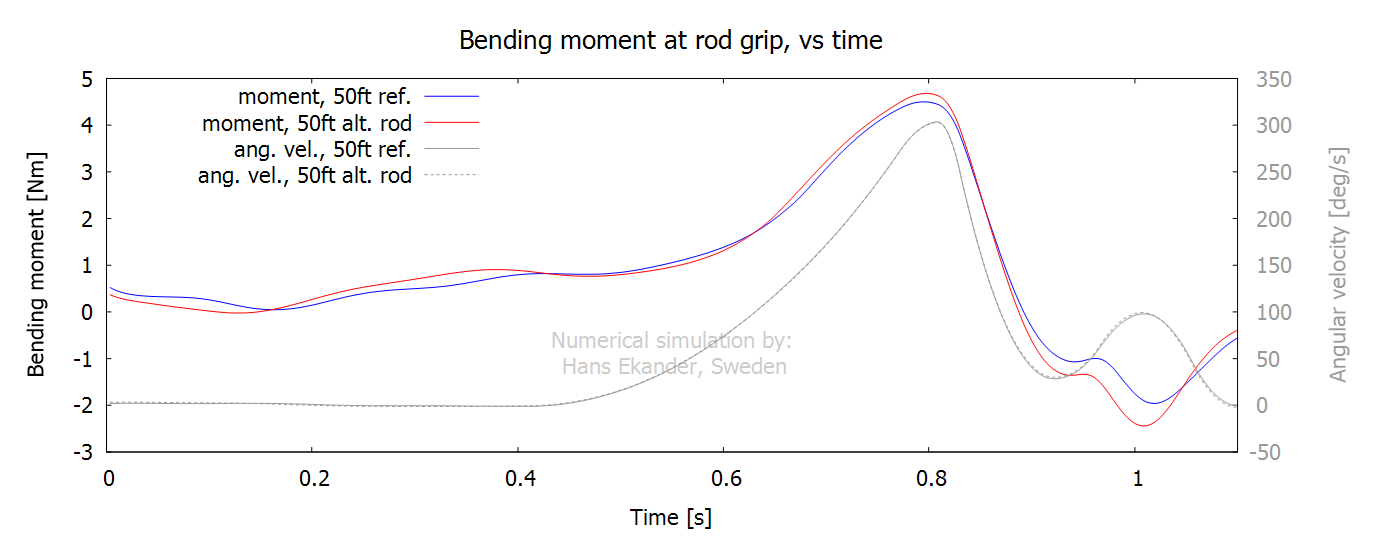

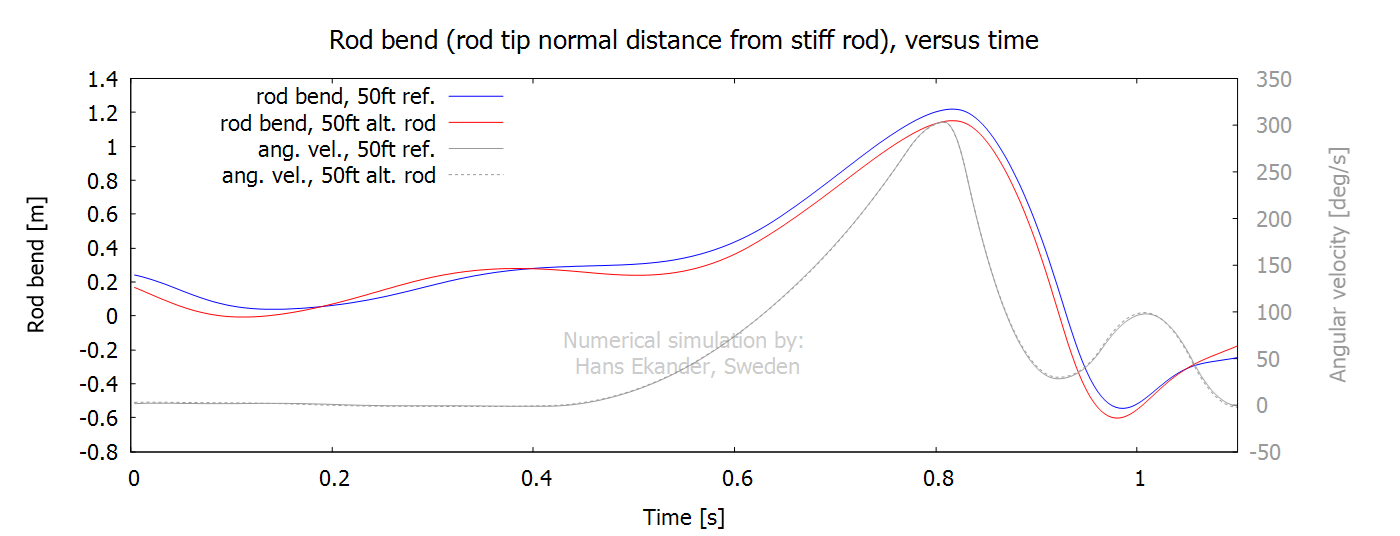

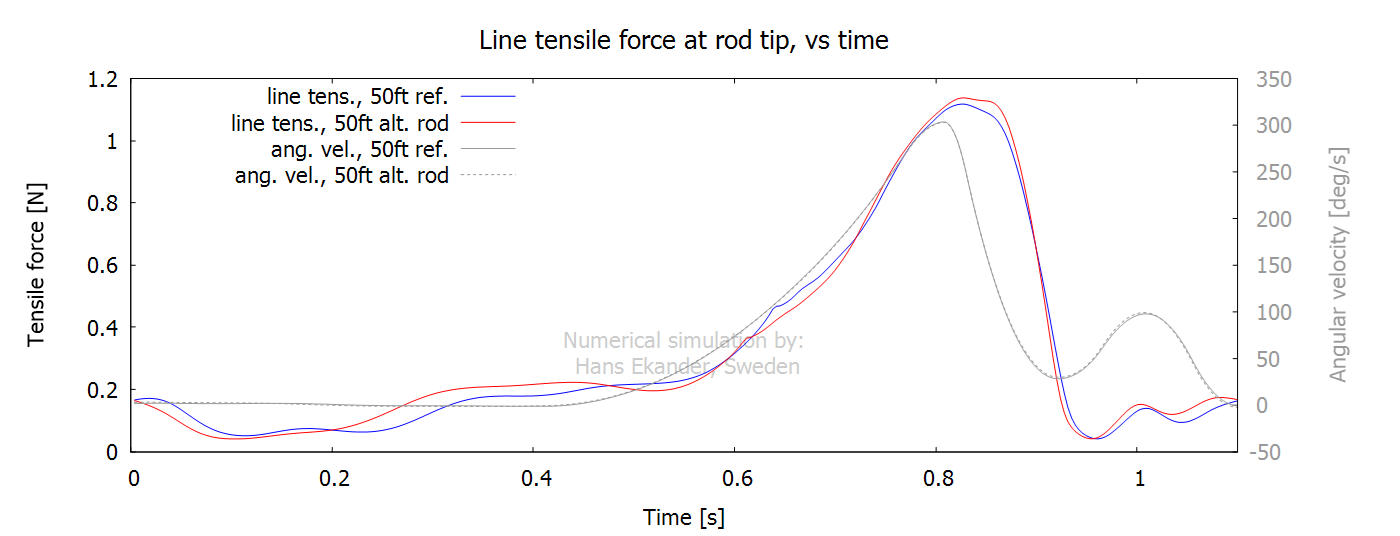

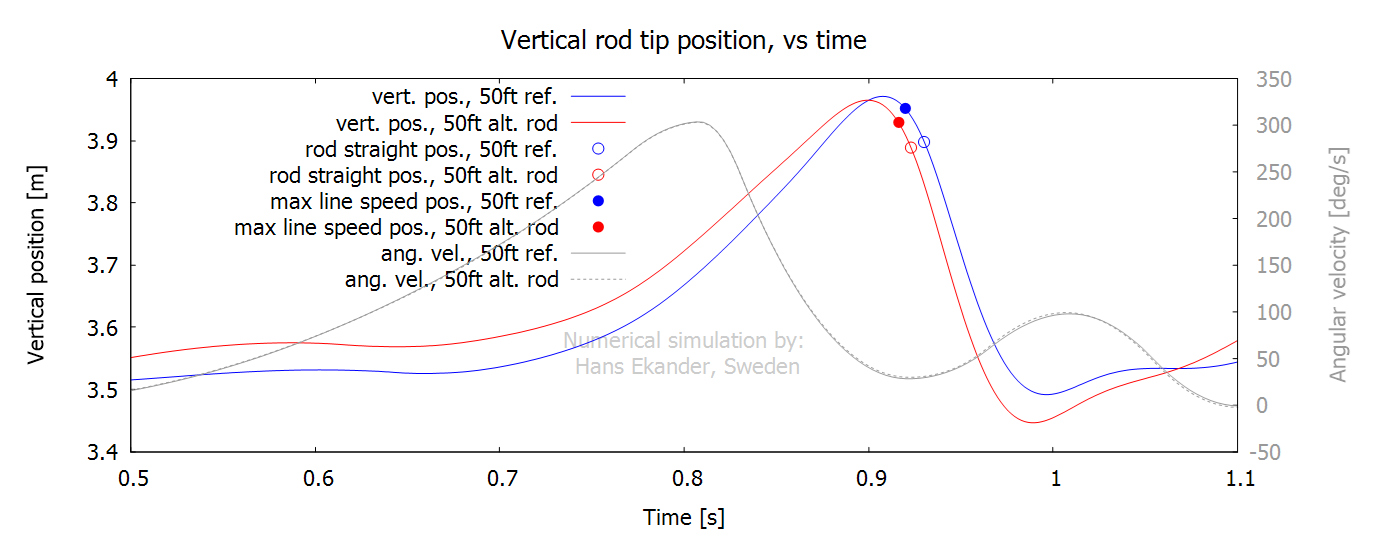

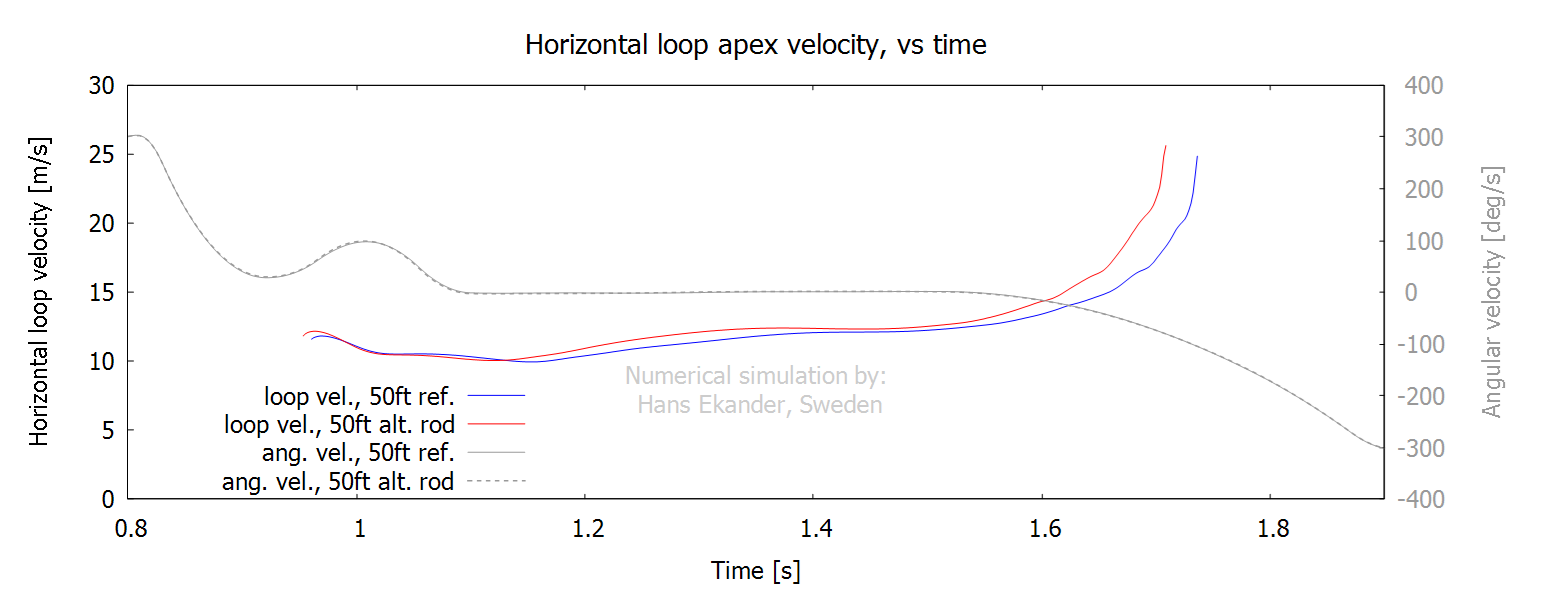

Output, graphs

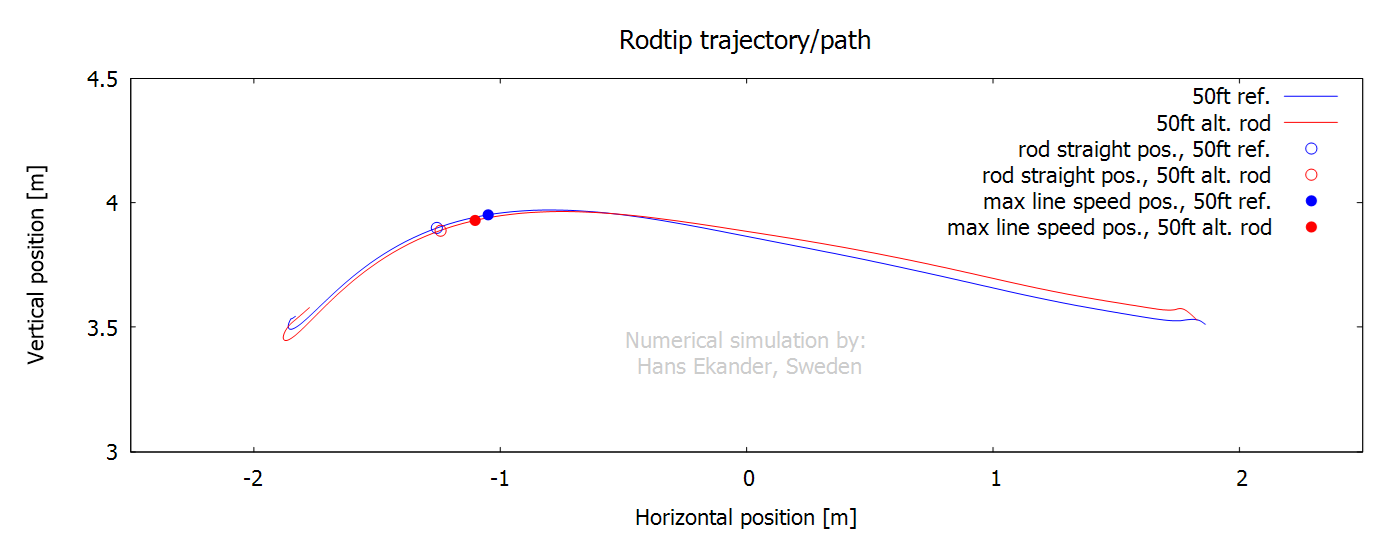

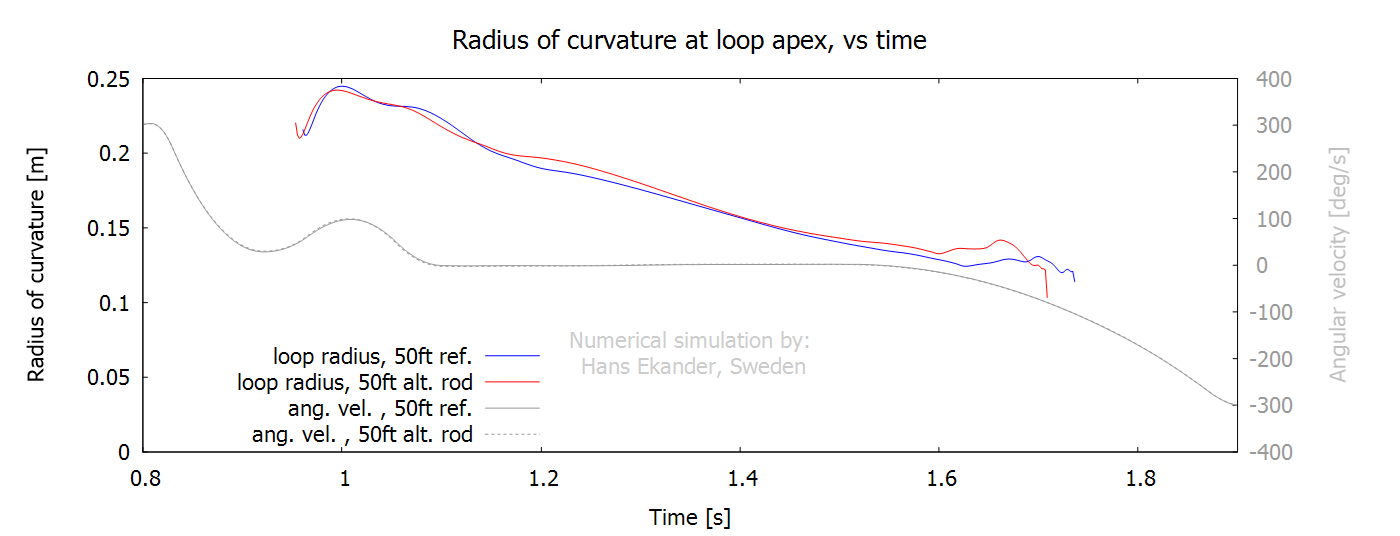

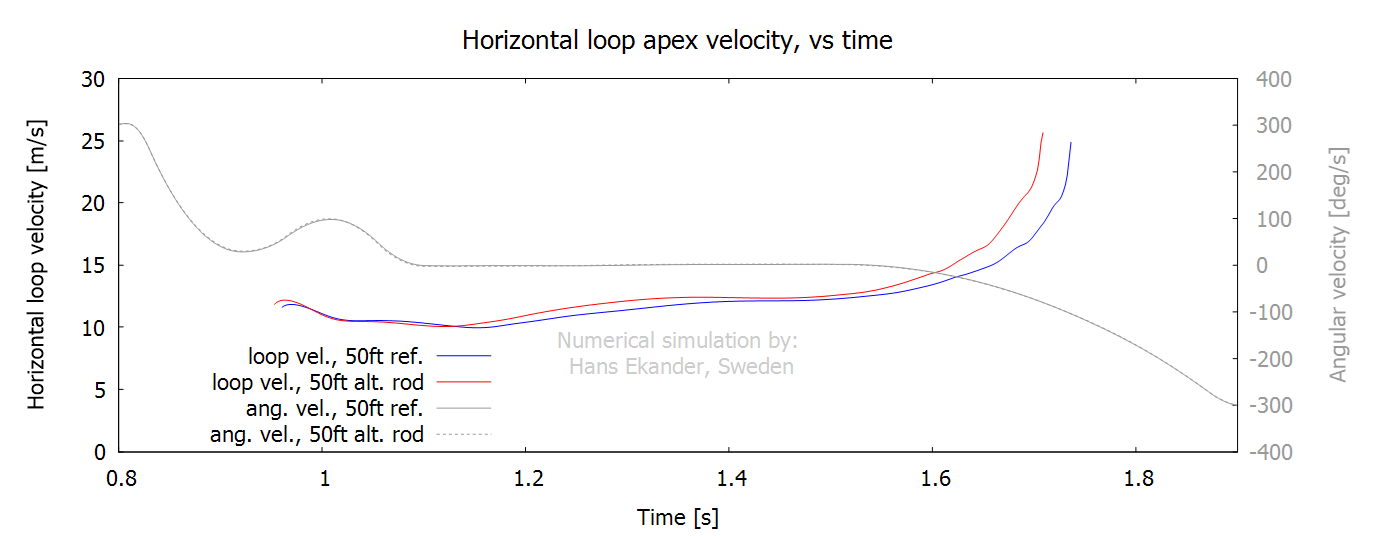

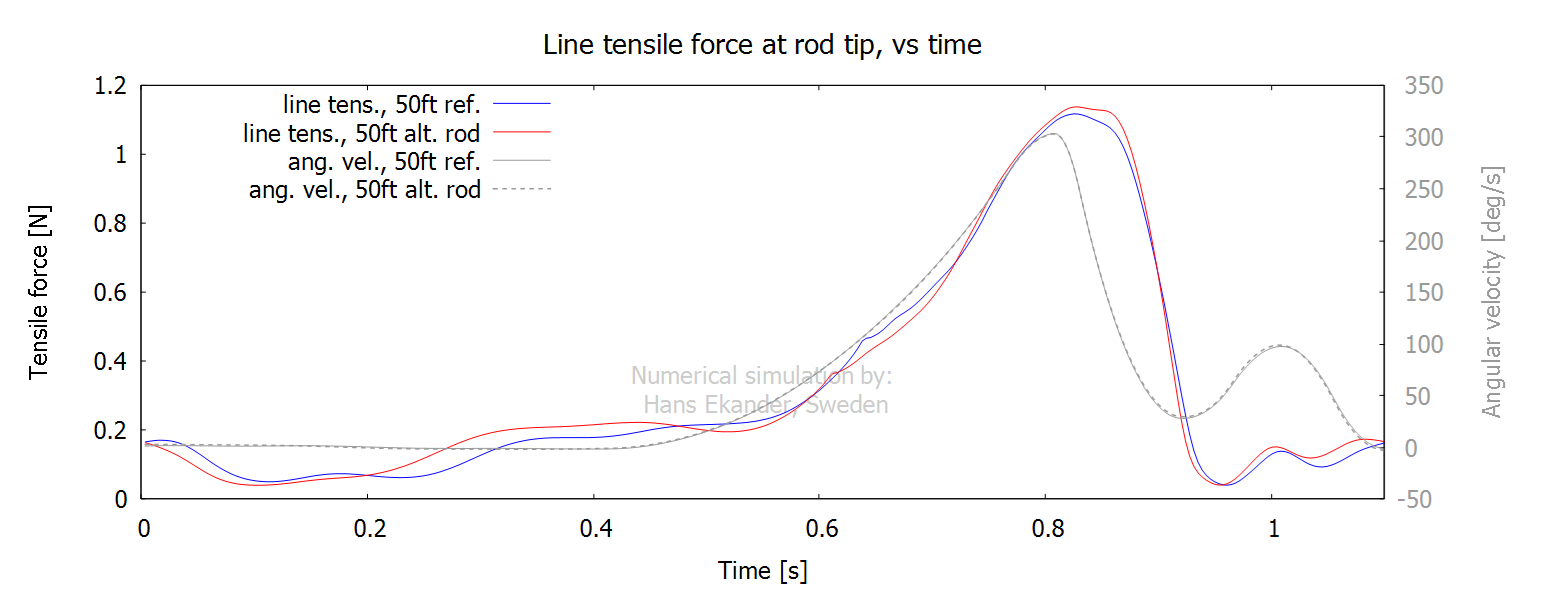

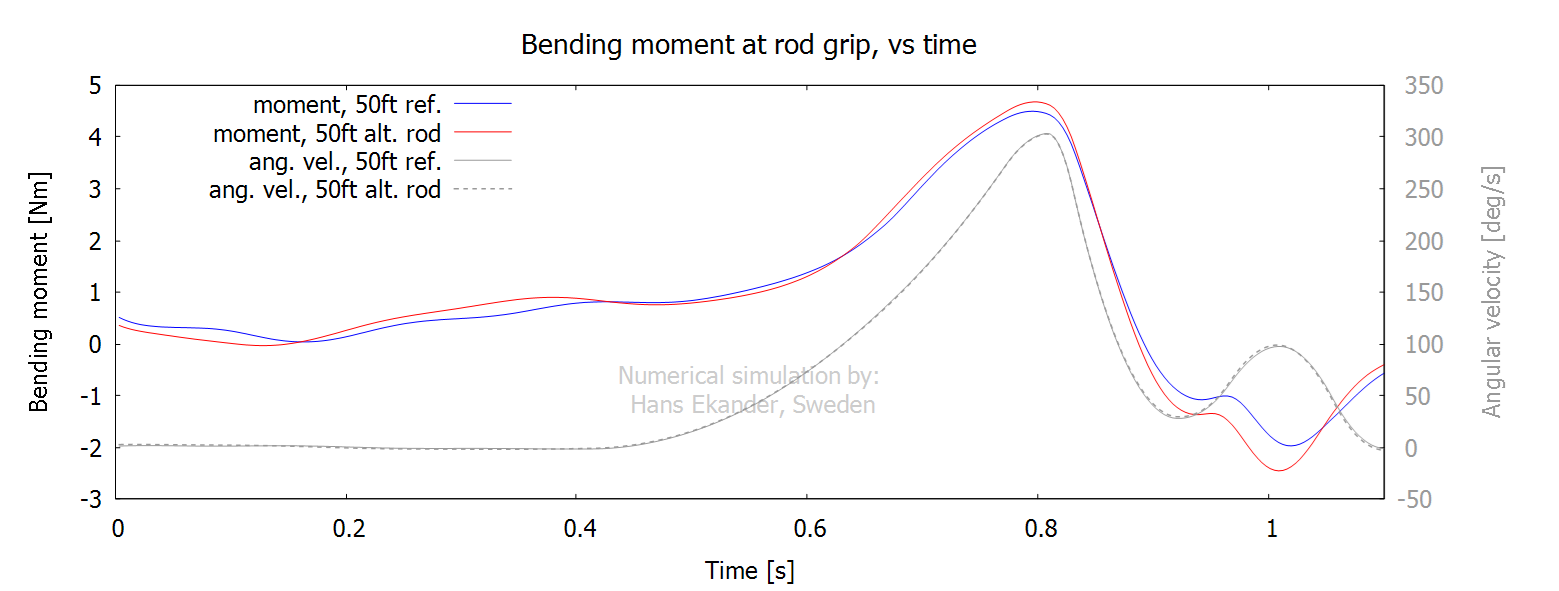

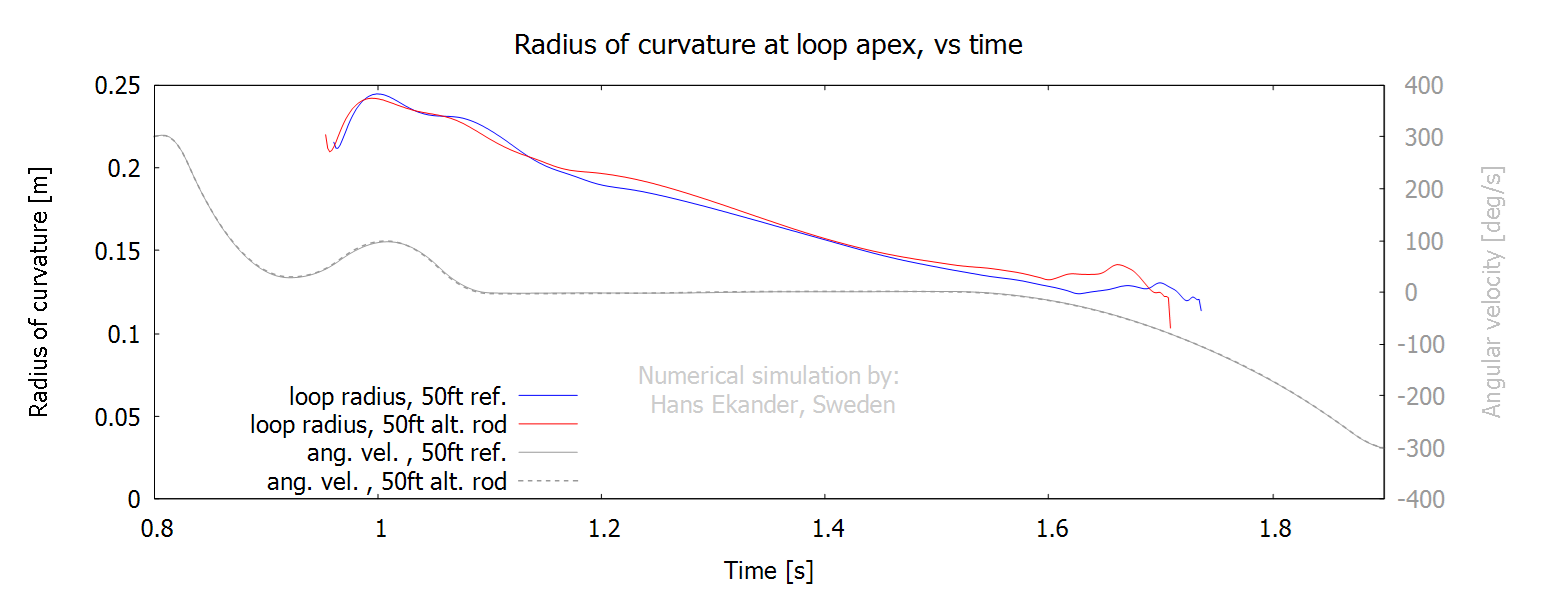

The graphs considered most relevant for the comparison are presented below. For explanations to the graphs please see the 50ft oh ref. cast.

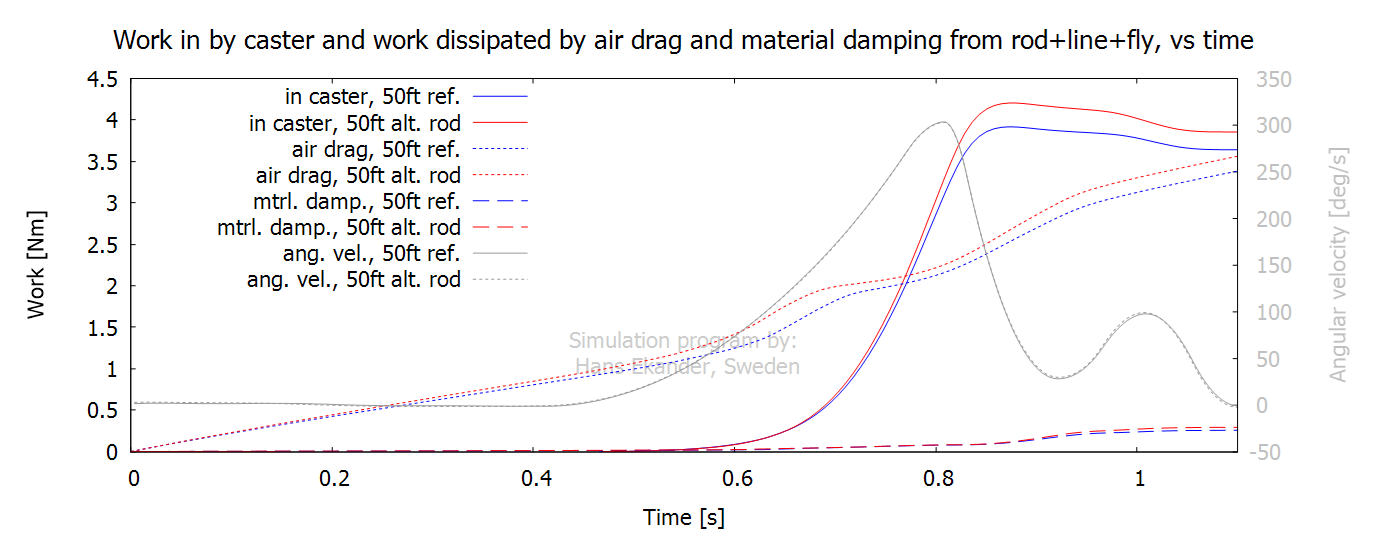

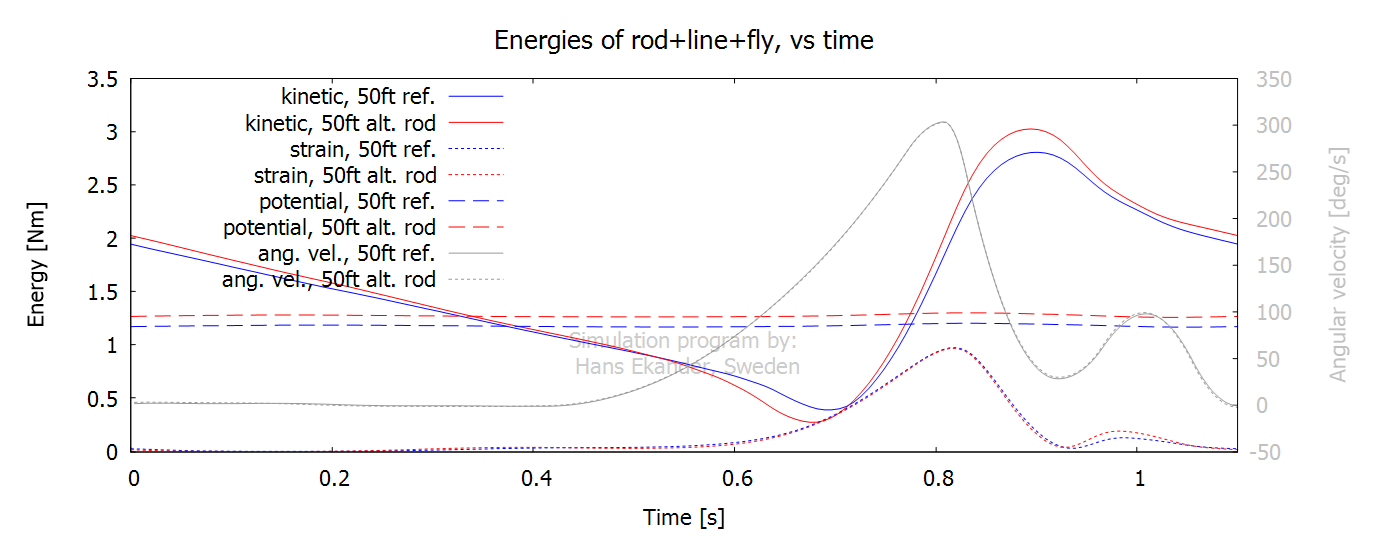

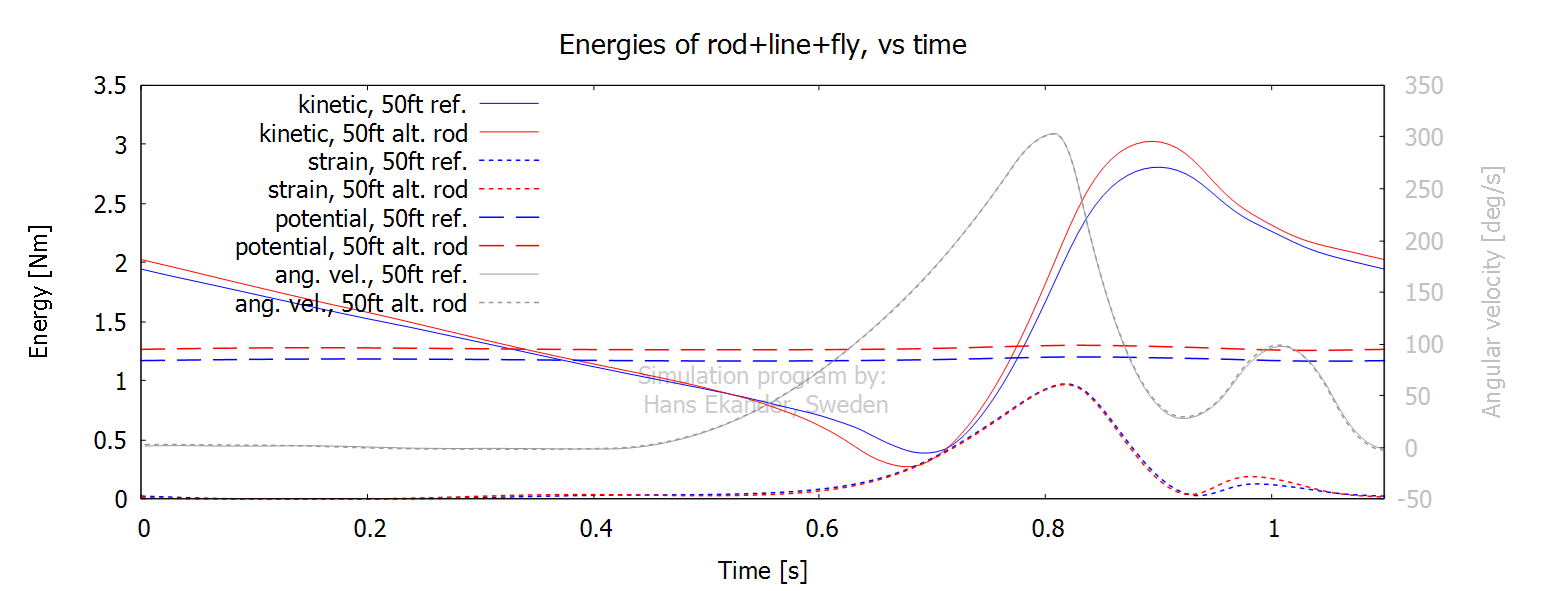

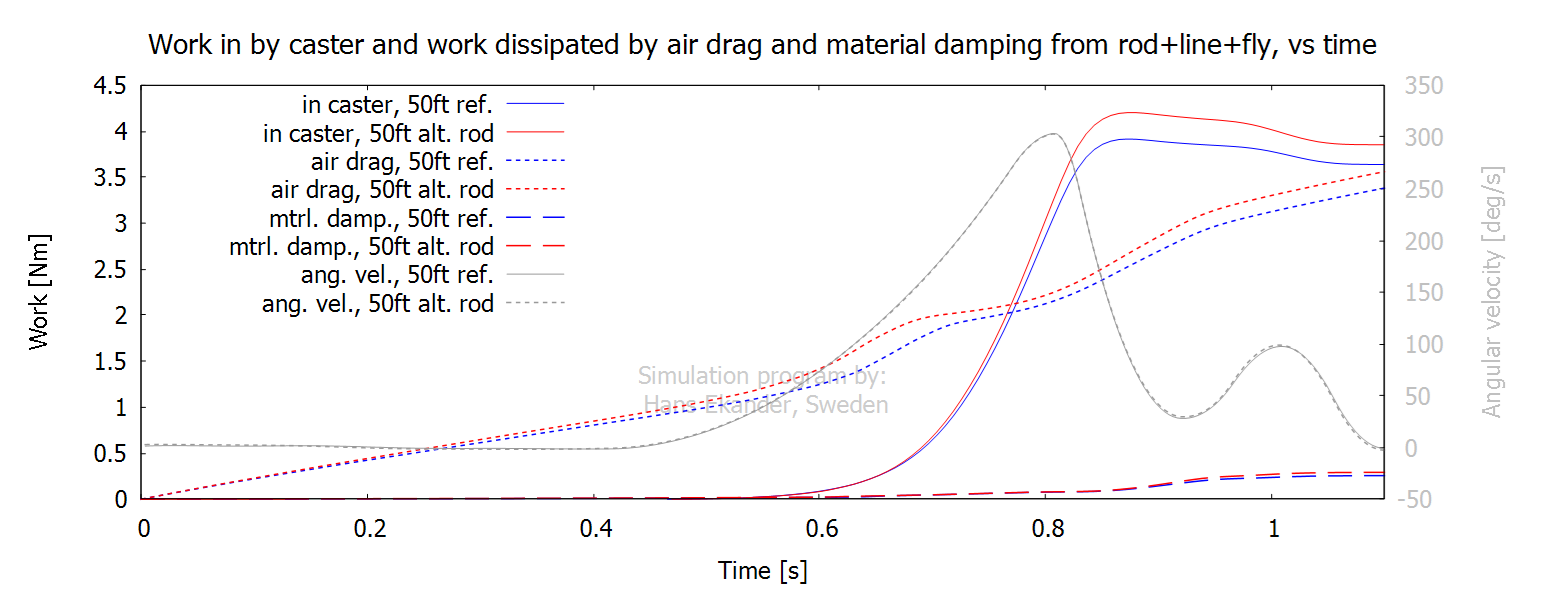

Output, energies and work
